If you wheel seriously, you already know that horsepower gets the glory but ground clearance does the actual work. The higher your truck sits from the ground, the easier it is to clear rocks, deep ruts and unexpected obstacles on the trail. Fortunately, several manufacturers now build trucks that come trail-ready straight from the factory. In this guide, we’ll look at some of the trucks with the best factory ground clearance, built specifically for drivers who want capability without aftermarket modifications.
Why Ground Clearance is the Ultimate Off-Road Metric
Ground clearance doesn't get talked about the way horsepower does, but it's the number that actually determines how far you go on a trail. It's the gap between the lowest part of your truck and the ground beneath it. And when that gap runs out, everything else stops mattering. Doesn't matter how much torque you're pushing. The second your frame hangs up on a rock or your diff kisses a ledge, you're done.
What makes factory clearance worth paying attention to is that the whole truck is built around that number. The suspension, the drivetrain, the way the chassis handles flex — all of it is calibrated for that specific height. That's exactly what separates the trucks with the best factory ground clearance from everything else on the lot. They're engineered to perform at that height from day one.
The Heavy Hitters: High Clearance 4x4 Trucks with Maximum Height

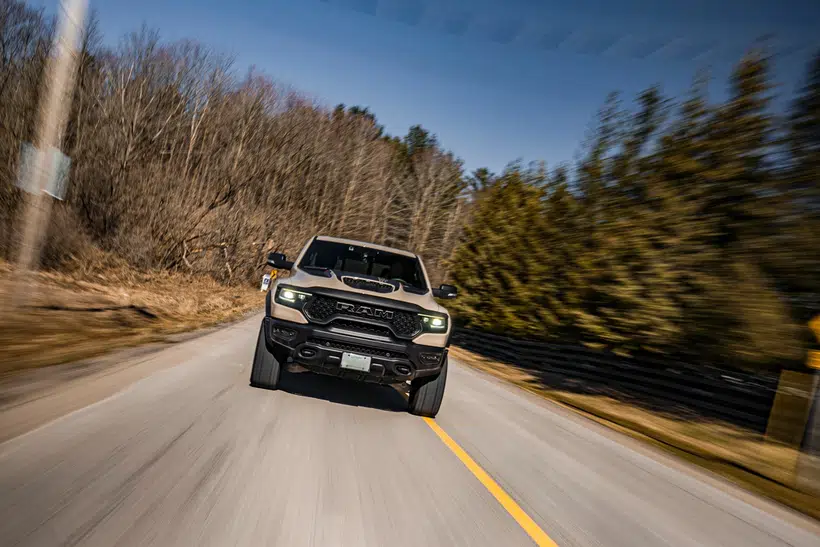

Ram 1500 TRX
Key Specs:
- Ground Clearance: 11.8 inches
- Approach Angle: 30.2°
- Max Towing: 8,100 lbs
The Ram 1500 TRX is built for high-speed desert running but still delivers impressive trail capability thanks to 11.8 inches of factory ground clearance. A key part of its suspension is the Bilstein Black Hawk e2 adaptive shocks. These shocks automatically adjust stiffness based on terrain and driving style, helping the truck stay stable when the suspension is working hard off-road. The long-travel suspension and large tires also help keep the underbody clear of rocks and deep ruts.

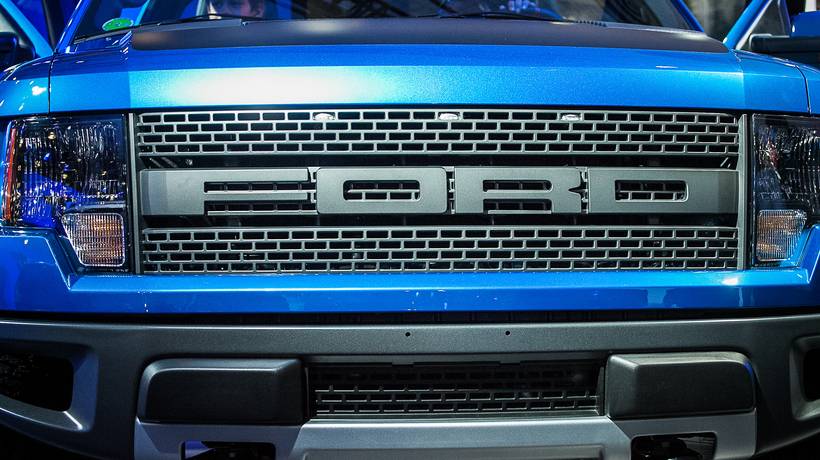

Ford F-150 Raptor & Raptor R
Key Specs:
- Ground Clearance: 12–13.1 inches (depending on tires)
- Approach Angle: Up to 33.1°
- Max Towing: 8,200 lbs
The Ford F-150 Raptor lineup offers some of the highest factory ground clearance in the full-size truck class. Depending on the tire package, clearance ranges from about 12 inches to as much as 13.1 inches. Trucks equipped with the larger 37-inch tires sit at the top of that range, giving the Raptor excellent ability to clear rocks, ledges and deep ruts on the trail.
Chevrolet Silverado 1500 ZR2
Key Specs:
- Ground Clearance: 11.2 inches
- Approach Angle: 31.8°
- Max Towing: 8,900 lbs
The Silverado 1500 ZR2 combines solid clearance with a very advanced suspension system. It offers 11.2 inches of factory ground clearance, supported by Multimatic DSSV dampers. These shocks use spool-valve technology that controls fluid flow very precisely, helping the suspension react quickly when the truck hits rocks or uneven terrain. The result is better wheel control and a more stable ride when crawling over obstacles.
Mid-Size Marvels: High Clearance in a Smaller Package
Toyota Tacoma TRD Pro
Key Specs:
- Ground Clearance: 9.4 inches
- Approach Angle: 35.0°
- Max Towing: 6,500 lbs
The Toyota Tacoma TRD Pro is known for its legendary reliability and strong off-road reputation. It provides 9.4 inches of factory ground clearance, which is more than enough for most trails, rocky paths and forest roads. The suspension is tuned specifically for off-road driving, helping the truck stay stable when the terrain gets rough. Many off-road enthusiasts also value the Tacoma because it’s built to handle years of hard use with minimal issues.
Chevrolet Colorado ZR2 Bison
Key Specs:
- Ground Clearance: 12.2 inches
- Approach Angle: 38.2°
- Max Towing: 5,500 lbs
The Colorado ZR2 Bison is designed for serious trail use and offers 12.2 inches of factory ground clearance, which is class-leading for mid-size trucks. This extra height helps the truck clear larger rocks and deeper ruts that would stop many other trucks. The Bison package also adds heavy-duty skid plates to protect the underside when driving over sharp obstacles.
Jeep Gladiator Mojave/Rubicon
Key Specs:
- Ground Clearance: 11.1 inches
- Approach Angle: Up to 43.6° (Rubicon)
- Max Towing: Up to 7,700 lbs
The Jeep Gladiator combines classic Jeep trail ability with the utility of a pickup truck. Both the Rubicon and Mojave trims offer 11.1 inches of factory ground clearance. A big reason the Gladiator performs well on rocky trails is its solid axles. This design allows the wheels to move up and down more when driving over uneven rocks, helping the tires stay in contact with the ground for better traction.
Heavy Duty Giants: Clearance for Work and Play
Ford F-250/F-350 Tremor
Key Specs:
- Ground Clearance: 10.8 inches
- Approach Angle: 31.7°
- Max Towing: Up to 21,900 lbs
If you want serious off-road capability in a heavy-duty work truck, the Tremor package on the Super Duty lineup is worth a look. Both the F-250 and F-350 Tremor come with 10.8 inches of factory ground clearance and 35-inch all-terrain tires straight from the factory. That larger tire setup lifts the truck higher off the ground and improves approach angles, which helps when climbing over rocks or dropping into deep ruts. You still get the towing and hauling capability Super Duty trucks are known for, but with suspension tuning and hardware designed to handle rough trails.
Ram 2500 Power Wagon
Key Specs:
- Ground Clearance: 14.2 inches
- Approach Angle: 34°
- Max Towing: 10,530 lbs
When it comes to factory ground clearance in heavy-duty trucks, the Power Wagon sits at the top. It delivers an impressive 14.2 inches of clearance, making it one of the tallest factory setups you can buy. This height helps the truck clear large rocks and obstacles that would catch the underbody of most pickups. The Power Wagon is also built for slow, technical trails. You can disconnect the front sway bar, which lets the wheels move farther up and down when crawling over uneven terrain. That extra wheel movement helps keep the tires planted for better traction.
Approach, Departure and Breakover: More Than Just Height
When you're comparing off-road truck specs, most people go straight to ground clearance but approach, departure and breakover angles are just as important to look at side by side
Approach angle is how steep a slope or ledge your front bumper can attack without making contact. Departure angle is the same thing at the back. It's how sharply you can drop off without the rear end dragging.
Breakover angle is what happens in the middle. Picture cresting a sharp hill. If the angle is too tight, the underside of the truck catches the peak and you're stuck with all four wheels off the ground.
A truck can have great ground clearance and still get stuck if these angles are off. Short overhangs and a shorter wheelbase help all three. It's worth checking all four numbers together, not just the clearance figure.
Factory Lift Kits vs. Aftermarket: What's Actually Worth It
Factory off-road packages cost more than a basic truck with an aftermarket lift bolted on. But there's a reason enthusiasts who've been around long enough tend to favor the factory setup.
When a manufacturer builds a truck like the Raptor or the Power Wagon, the suspension height, drivetrain geometry, shock tuning and tire sizing are all developed together as one system. Nothing is an afterthought. An aftermarket lift, even a good one, is working backwards. It's modifying something that was designed to sit lower, and the results depend entirely on the quality of the parts and the person installing them.
That doesn't mean aftermarket is always wrong. A well-executed lift from a reputable shop can be excellent. But a cheap lift done poorly will wear out your tires faster, throw off your handling and potentially void your warranty. If the factory option exists, it's usually worth the premium.
Buying Used: What to Look for in a High-Clearance Truck
Buying a used off-road truck can be a great move. Someone else took the depreciation hit and the truck may already have some useful upgrades. But there are a few things worth checking before you hand over the money, especially on a truck that's been used the way it was built to be used.
Start underneath. Scrapes and gouges on the skid plates are normal. But look for damage that goes beyond the skid plates and into actual drivetrain or suspension components. That tells a different story.
Also check whether the suspension is still factory. A cheap lift that wasn't installed correctly can throw off your geometry, wear out components faster and void what's left of any warranty. If it's been modified, find out exactly what was done and who did it.
Which High-Clearance Truck is Right for You?
Narrowing down the trucks with the best factory ground clearance really comes down to how you plan to use the truck day to day. Performance models like the Ford Raptor and Ram TRX deliver serious off-road speed and capability. Mid-size options such as the Toyota Tacoma TRD Pro balance maneuverability with trail-ready clearance, while heavy-duty trucks like the Ram 2500 Power Wagon offer maximum factory ride height.
